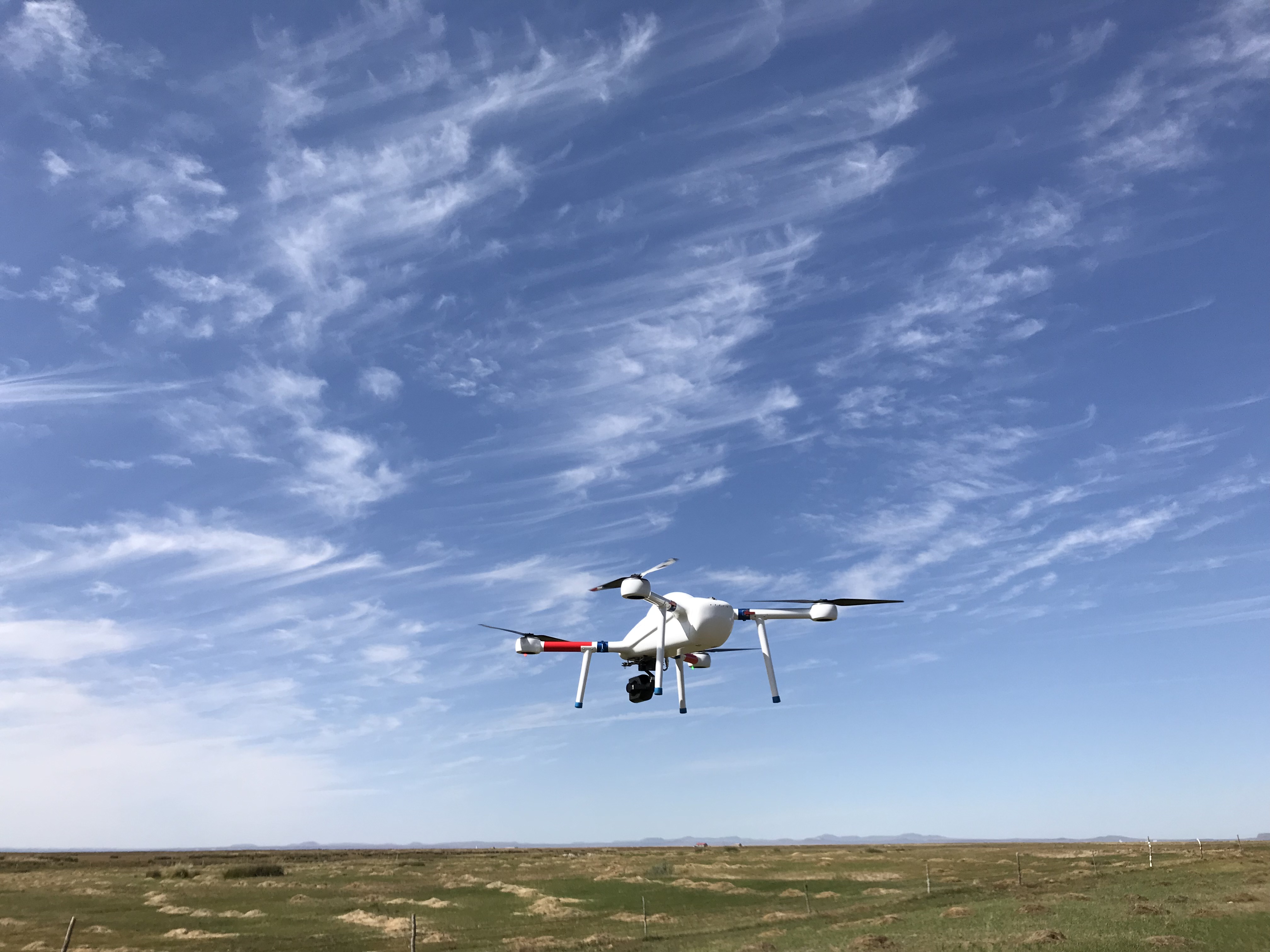

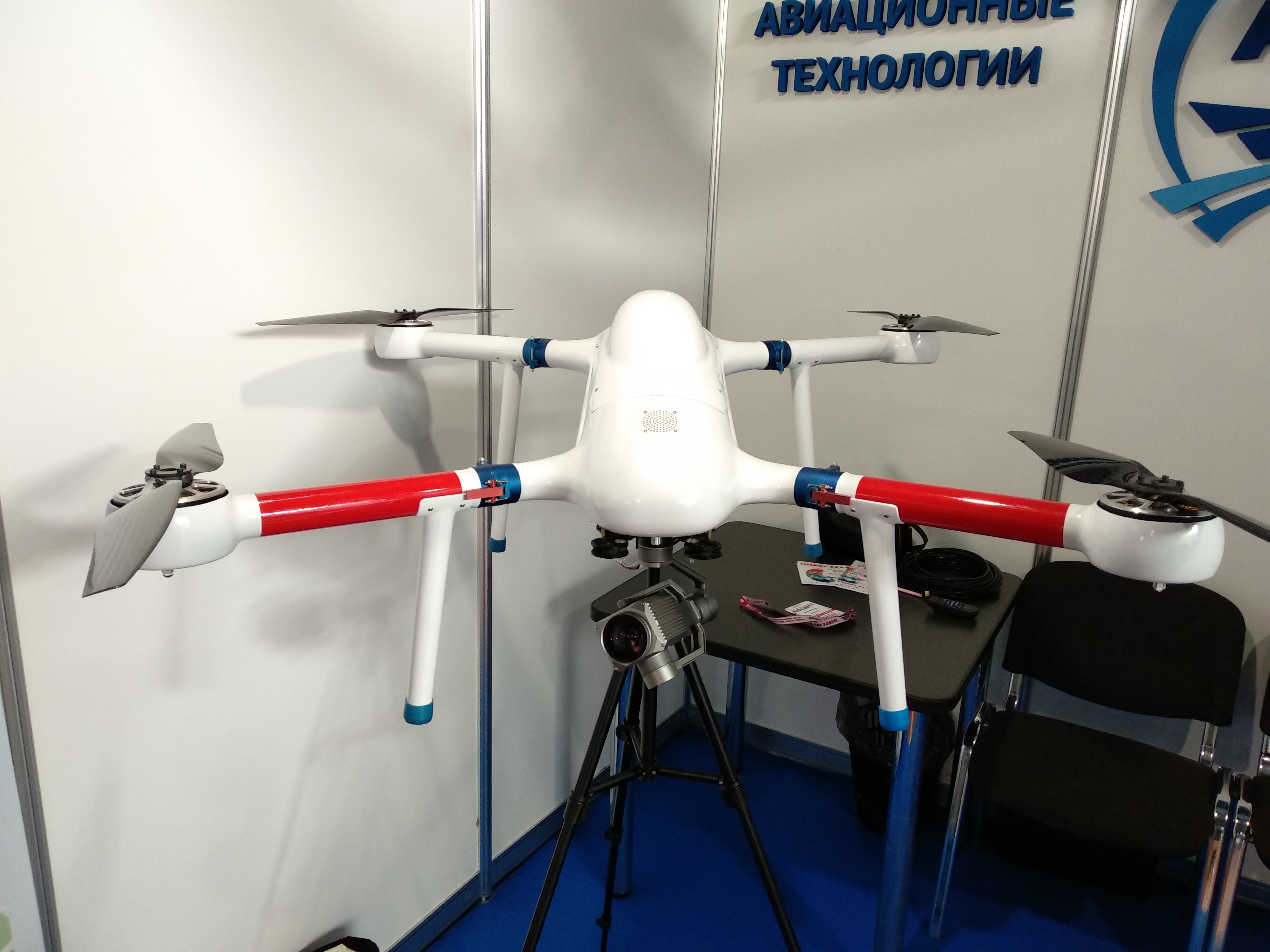

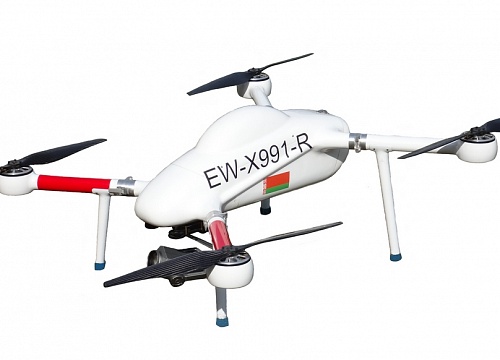

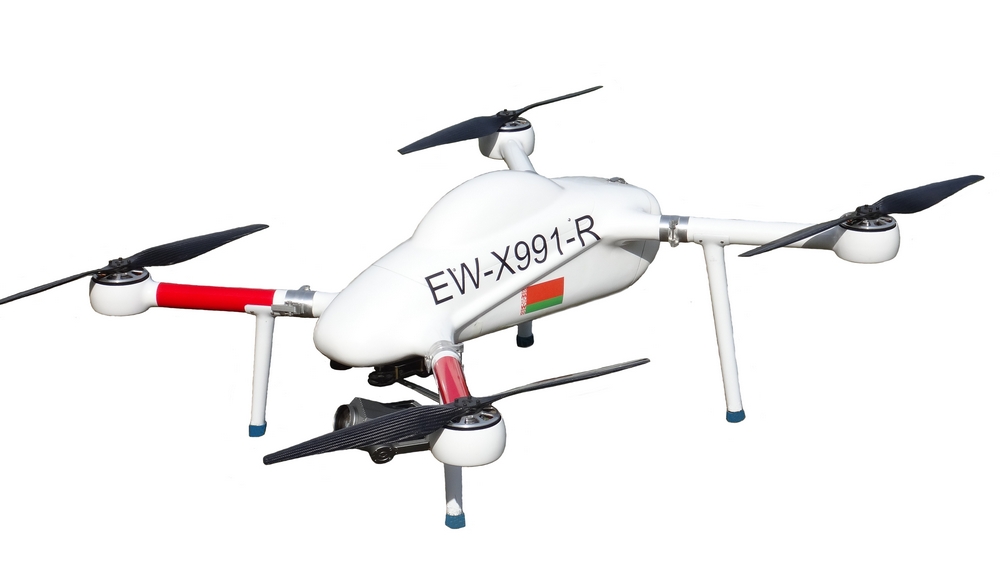

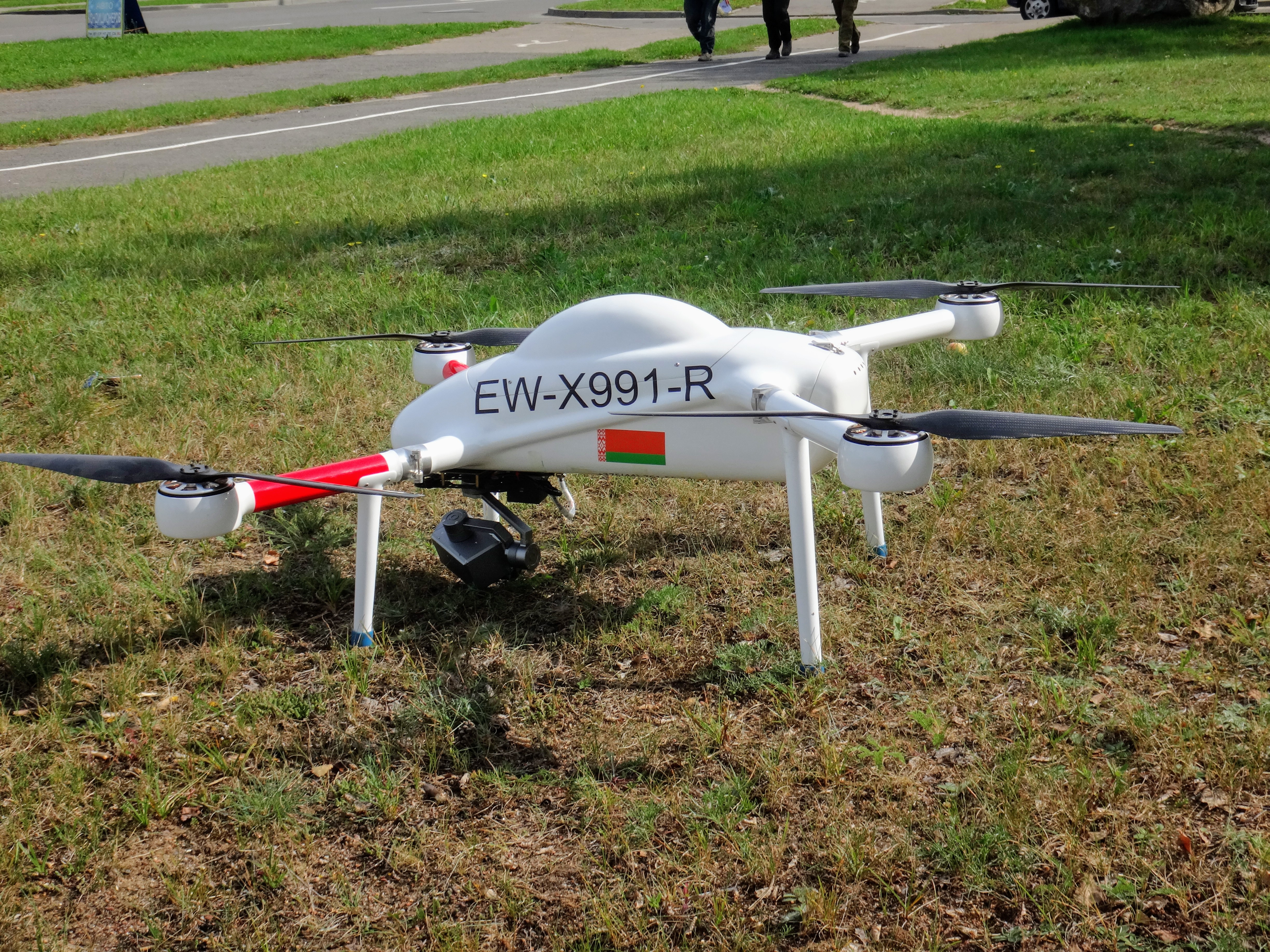

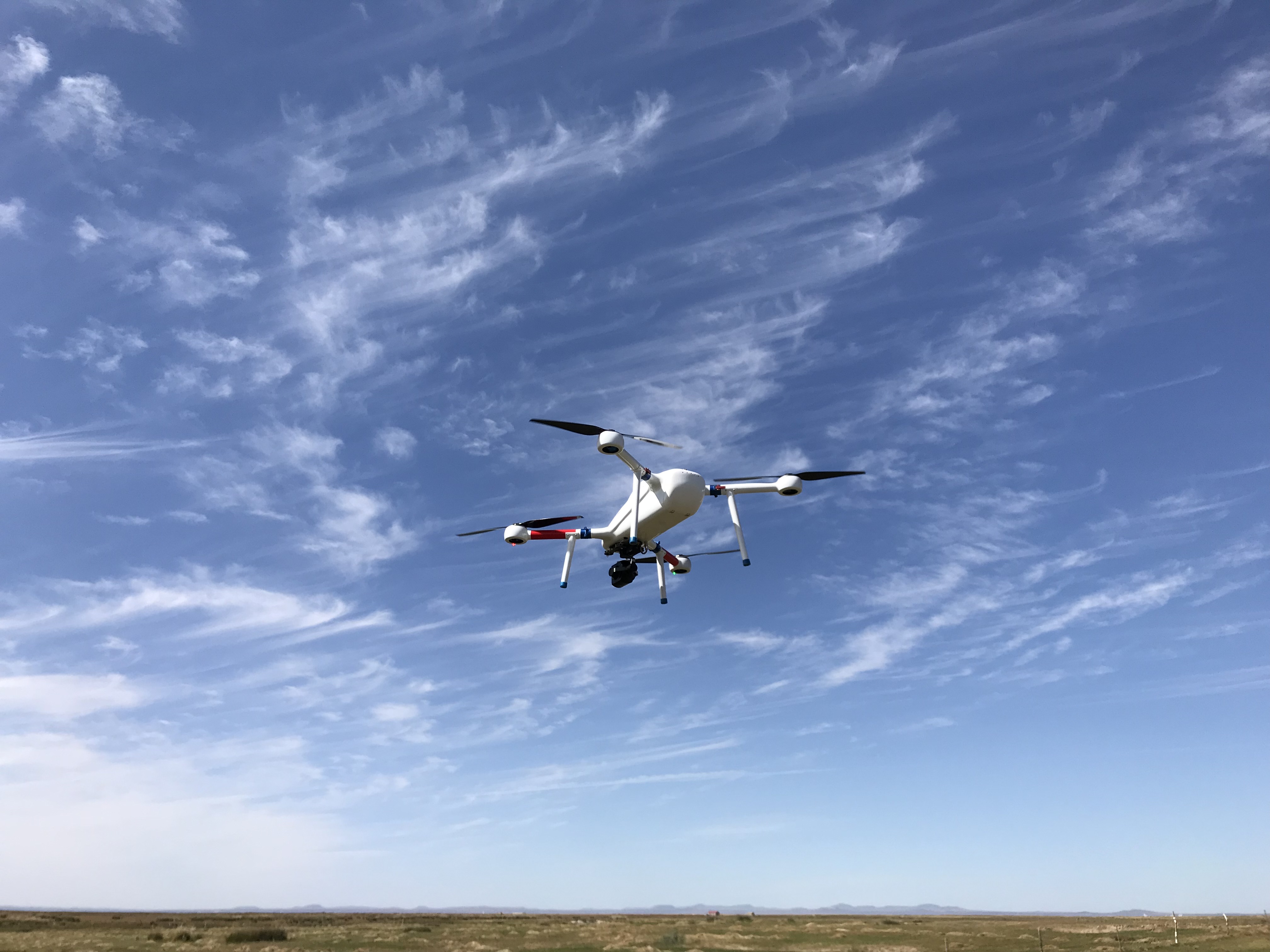

A10-X UNMANNED AIRCRAFT

Searching, detection, capturing and following of static and mobile subjects. Land resources monitoring, aerial surveillance of ground or surface objects at distances up to 10 km, tying them to a map terrain in real time during day and at night.

This UAS may be applied for:
  • Mapping, searching, detection, and following of static and moving subjects under clear and adverse meteorological conditions at any time with video transfer in real time to the ground control station.
  • Detection and determination of coordinates of ground objects.
  • Detailed service and industrial target diagnostics.
  • Video surveillance and aerial photography.
A10-X components:
  • UAV with target load
  • ground control station
  • antenna
  • SPTA set


Flight Modes:
  • manual control
  • semi-automatic control
  • automatic control

Technical Specifications

UAV Size

1360x1360x500 mm

Rotor Size

71х22 (66х20) mm

Max. Take-off Weight

12 kg

Max. Mission Payload

2 kg

Cruising Speed

20-30 km/h

Max. Speed

45 km/h

Operating Height

100-500 m

Service Ceiling

3000 m

Control Radius                                                                     10 km

Endurance

60 min

Motor

Electric

Tale-off/ Landing

Vertical

Payload

Combined high-resolution video camera TV band, IR band and laser rangefinder, camera, multispectral camera
